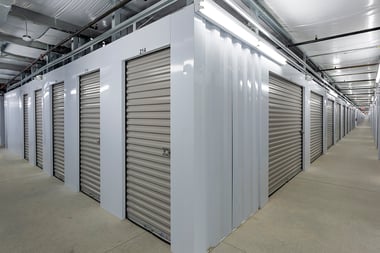

Self-Storage Doors & Hallways
Choosing a vendor for your self storage door needs is a big decision! You want a company that has both experience and innovation, and that’s where Janus International comes in.
STORAGE UNIT DOOR MODELS
Janus offers a full line of roll-up and swing storage unit doors in varying sizes for all types of self-storage facilities.
The available options include:
Features Include
Door Springs- Coated with grease during production, which prevents rust and corrosion
- Enclosed in a tube for lifetime protection
- Provide for smooth door operation
- Allows for simplified spring tensioning
- Tensions all springs at once
- Requires no pins to hold the tension on the spring
- Provided at no additional cost
- Permanently lubricated
- Require virtually no maintenance
- Tube housing protects springs and strengthens the axle
- Eliminates axle push and shift that a live axle would create
- Allows for springs to be tuned all at the same time
ADD – optional shipping options and latches
Janus International has made these key steel roll up door features standard. There is no need for expensive options or upgrades.
Features Include
- Minimizes the locking and reinforcement needed to strengthen the door to pass rigorous wind load testing.
- Fewer friction points and less additional weight results in a door that operates better and still yields greater strength than any other available to the self storage industry.
- Meets the requirements of ASCE 7 (American Society of Civil Engineers). The ASCE Standard is used in the Florida Building Code and the International Building Code.
- Applicable opening sizes range from 3′ wide through 10′ wide, with the maximum height being 10′.
- Locking device may be located on the curtain or the bottom bar.
- Doors may be installed on steel, concrete, or filled block jambs.
- Higher wind load ratings are available for certain sizes and can be determined on an individual basis.
ADD – optional shipping options and latches
Janus International has made these key door features standard. There is no need for expensive options or upgrades.
Features Include
- Pre-Lubricated Springs During production, springs are factory-lubricated and enclosed in a tube to protect them from the environmental elements.
- Dead Axle & Barrel Assembly An enclosed spiral barrel houses the dead axle assembly and offers durability and smoother operation as weight is distributed throughout the barrel.
- Ratchet Tensioning Device Allows you to simultaneously fine-tune springs due to the eight different positions on the tension wheel, which provides equal pull on the left and right sides to ensure balanced operation of the door.
- 24-gauge Corrugated Door Curtain Manufactured from galvanized grade 80 steel and coated with super durable polyester paint, available in white only.
- Metal Windlocks 11-gauge provides strength and security. Windlocks do not come in contact with guides during normal door operation.
- Insulated version is available. Side and top draft stops are included.
Features Include
Pre-Lubricated Springs- Factory lubricated to protect them from environmental elements
- Enclosed in a tube for lifetime protection
- Provides for smooth door operation
- Enclosed spiral barrel houses dead axle assembly
- Offers durability and smoother operation as weight is distributed throughout the barrel
- Allows simultaneous fine tuning of springs due to eight different positions on the tension wheel
- Equal pull on left and right sides to ensure balanced operation of the door
- Robust lower bar, equipped with six secure clips that smoothly glide within the guides
- Firmly anchored guides on the floor
- Enhanced stability and support
- Manufactured from galvanized grade 80 steel
- Coated with super durable polyester paint in more than 30 color options
- Side and top draft stops included
Documents
NS+ Supplemental Installation Instructions
NS Retrokit
Features Include
Good for door replacements and new construction.
- TWO 9-gauge security clips that extend fully into the guide.
- Firmly anchored with 14-gauge support angles screwed into the floor for enhanced stability and support.
- Roll-formed clear acrylic coated galvanized steel reinforced bottom bar a 1-1/2” x 2” x 12-gauge full-width galvanized angle. Lift handle(s) installed on exterior side of bottom bar with interior stop clips.
Features Include
- Slat curtain in four standard colors (external doors)
- Meets ADA requirements for self-storage
- Opens 180 degrees, a strong safety feature and space-saving feature
- Pre-assembled for easy installation
- Special design features for external units
Each of these models is created with 26 gauge galvanized steel and available in over 30 paint colors (to include lead-free options), backed by a 40-year limited paint warranty (excluding the 850 series which is 24 gauge steel and available in Satin White only). There’s no question that these heavy-duty storage doors will serve your facility well for decades to come with their superior design. The brackets, gears, chains and tensioners are also located all in one place on the doors, so you won’t have to struggle through a complicated adjustment process.
The swing doors are a great option if you’re running low on space. Each swing door features X-bracing technology to prevent both flexing and door racking. They also meet the ADA requirements for self-storage facilities, arrive on your doorstep pre-assembled for easy installation, and open 180 degrees.
